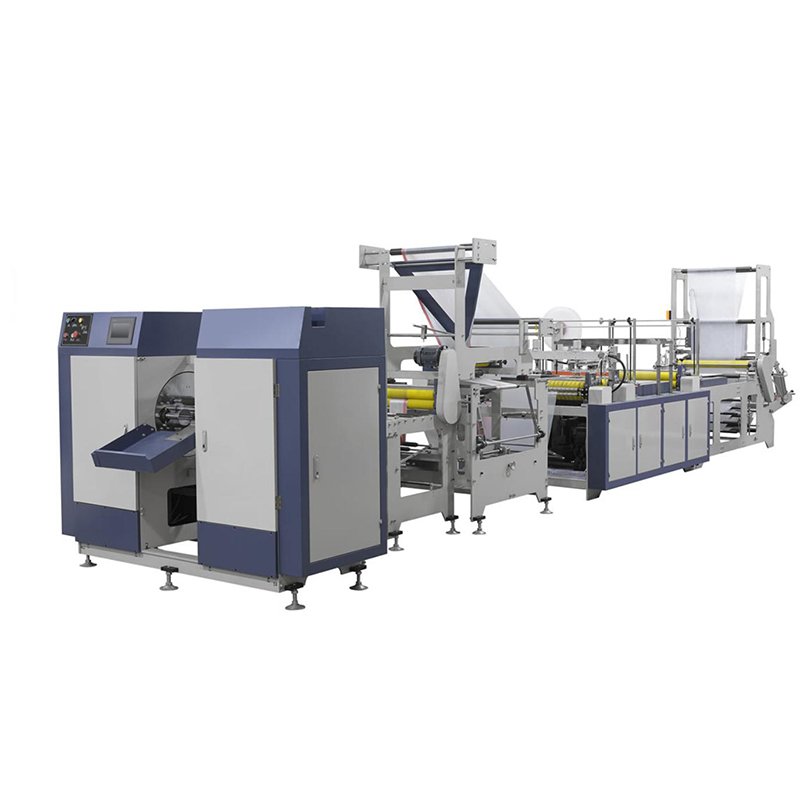

SWCS-800 Fully Automatic Drawstring Garbage Bag Making Machine
Machine Instructions
1. This machine is manufactured by our company using advanced technology from both domestic and international sources (the first of its kind in China).
2. Adopting computer-controlled, stepper motor (servo motor) structure model.
3. It has photoelectric automatic tracking, white bag and color bag conversion functions, microcomputer fixed length, automatic counting, arrival alarm, and automatic temperature.

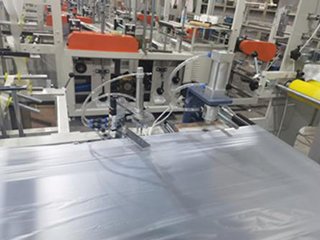

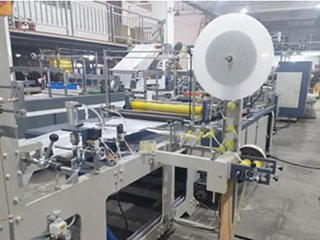

4. It has automatic cutting, punching holes, semi-circular holes, threading straps, strap displacement, edge sealing, bottom sealing, and point breaking.
5. Adopting a tension-free sealing mechanism, the sealing and breaking are synchronized, and the bottom sealing is firm and beautiful.
6. This machine can process continuous roll through garbage bags, and has the functions of continuous roll flat pockets and flat pockets.
7. The whole machine adopts a one-stop production line with a high degree of automation, making it an ideal equipment for making garbage bags and an advanced equipment to replace imported similar products.
Main Technical Parameters
Model 型号 | 800mm | 1000mm |
Bag making width/depth 制袋宽度/深度 | 400-700mm | 500-900mm |
Roll width 卷宽度 | 300mm | 300mm |
Bag making length 制袋长度 | 300-1000mm | 500-1000mm |
Machine making speed 制袋速度 | 50-160pcs/min | 50-160pcs/min |
Bag making thickness 制袋厚度 | HD:0.007-0.02mm LD:0.02-0.05mm | HD:0.007-0.02mm LD:0.02-0.05mm |
Temperature control range 温控区间 | 5Zones | 5Zones |
Total power 总功率 | 18kw | 18kw
|
Total weight 总重量 | 2500kg | 2800kg |
Machine dimension 机器尺寸 | 1000x2200x1900 | 1200x2200x2900 |
Product Video

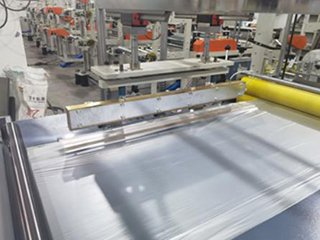

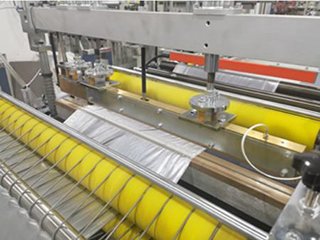

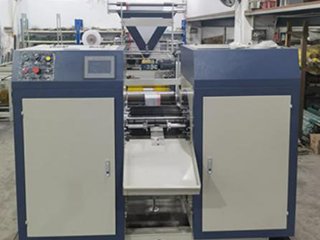

Product Showcase
Sample Picture
