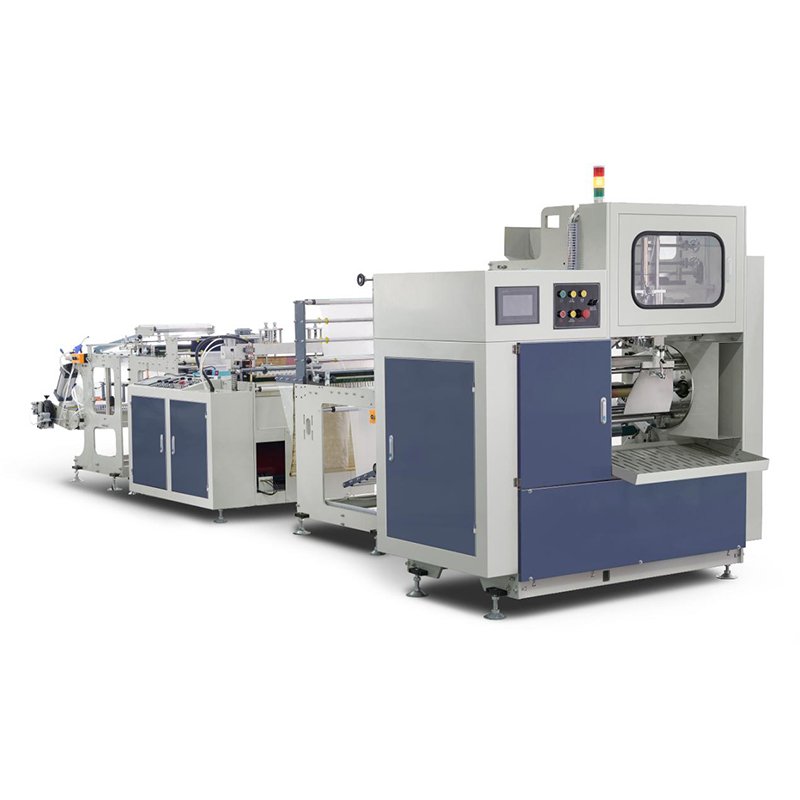

SNWF-500 Automatic Rolling Bag Making Machine With Core
Performance and Characteristics
1. Computer automatic control, automatic counting and set counting alarm, high efficiency, saving manpower and time;
2. From film rolling to finished bag, it is fully automatic and one-time;
3. Domestic servo motor has fixed length, photoelectric tracking, accurate and stable, and photoelectric control is adopted for feeding;
4. Adopt hot cutting device and intelligent temperature control system to make the bag mouth sealed firmly and smoothly;
5. The main engine adopts frequency converter to control speed regulation;
6. Rewinding is controlled by PLC;
7. Discharging is controlled by frequency converter;
Main Technical Parameters
Model 型号 | SNWF-500 |
Bag making width制袋宽度 | 80-400mm |
Bag making length制袋长度 | 100-800mm |
Bag making speed制袋速度 | 60-300 PCS/MIN |
Max line speed of film最高线速度 | 115m/min |
Bag making thickness制袋厚度 | 0.005-0.02mm |
Bag making methods制袋形式 | Rolling star sealing flat bag 连卷平口袋 |
Machine weight 整机重量 | 2000KG |
Machine size整机尺寸 | 6200*2200*1900mm（长*宽*高） |

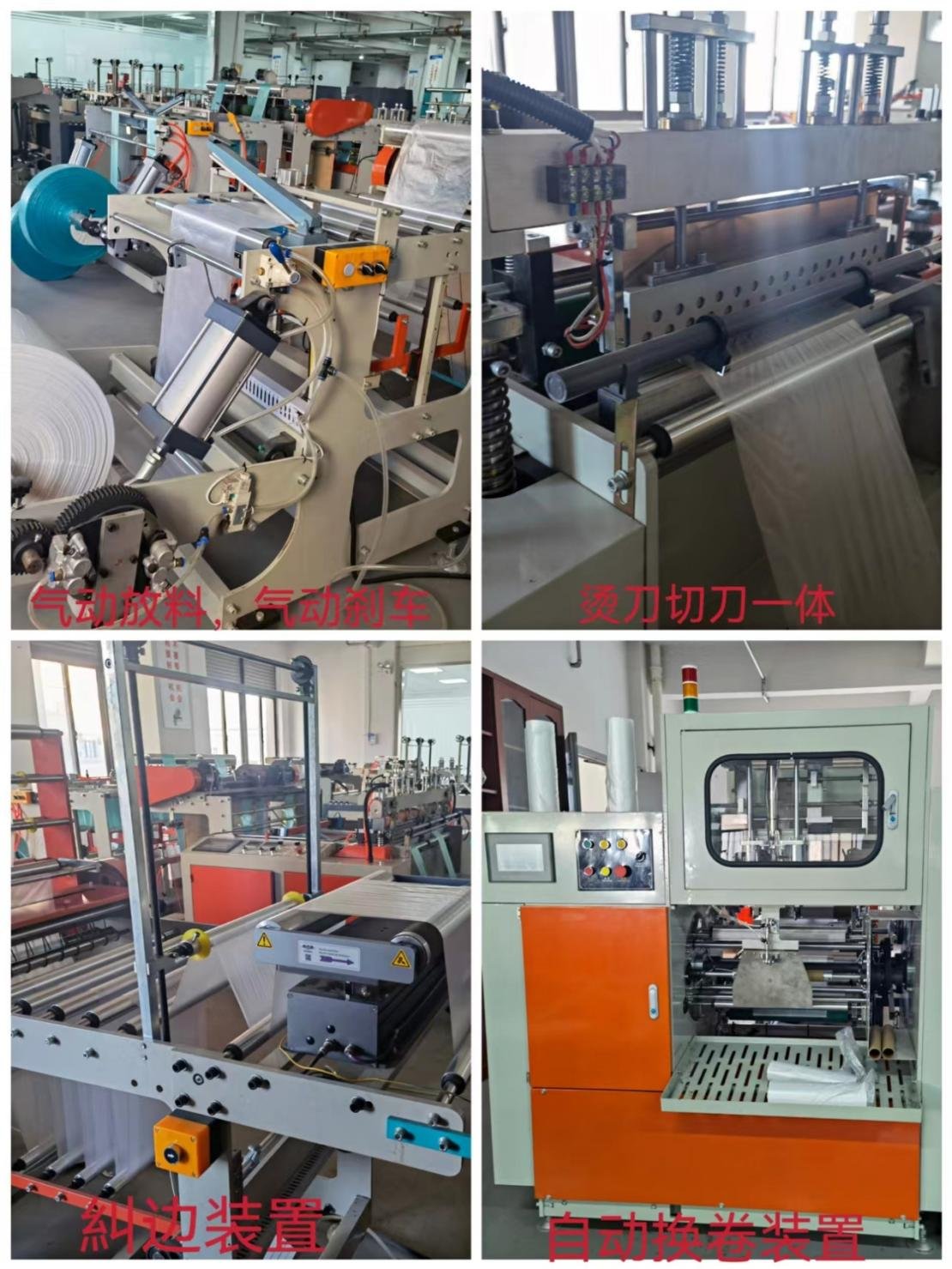

Product Showcase
