SNW-RQL series PP/OPP/PE Multi-Functional Side Sealing Bag Making Machine
Characteristic
* Versatile Modular Structure
Allows for the flexible installation of various auxiliary units, enabling a single machine to produce a vast range of bag types, from self-adhesive clothing bags to reinforced header pouches.
* Precision Heat Sealing & Continuous Side Cutting
Equipped with a specialized, heavy-duty side sealing knife with independent temperature control, ensuring ultra-strong, clean, and elegant side welds that stand up to high material tension.
* Intelligent Punching & Tape Application Synchronicity

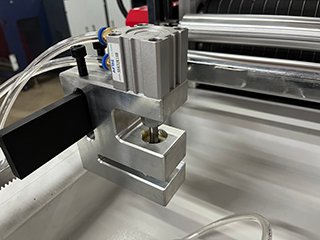

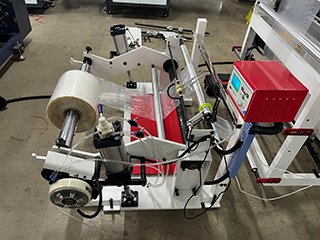

Features high-precision, automated systems for in-line hole punching (butterfly/plane holes, round vents) and double-sided adhesive tape application, executing tasks flawlessly at top speeds.
* Microcomputer Control & Dual Servo Drives

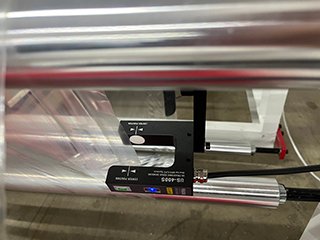

Driven by top-tier servo motor systems and an intuitive digital control panel, delivering exact bag length control, seamless tension regulation, and zero-error photo-eye color mark registration.
Use
* Apparel & Textile Self-Adhesive Bags
The industry standard for mass-producing high-clarity OPP/PP clothing bags, T-shirt display pouches, and hosiery packaging bags with resealable adhesive flaps.
* Stationery, Greeting Cards & Document Sleeves
Perfect for manufacturing crystal-clear packaging for notebooks, pens, holiday cards, and multi-hole binder protective sheets.
* Boutique Gift, Toy & Bakery Packaging
Widely used to produce high-gloss retail gift wraps, small toy pouches, and side-sealed bread or confectionery packaging bags.
* Hanging Header Bags for Electronics Accessories
Ideal for fabricating premium retail pouches with reinforced pearlized film headers and hanger holes, widely used for cell phone cases, USB cables, and hardware components.
Main Technical Parameters
型号 | Model | SNW-RQL600 | SNW-RQL800 | SNW-RQL1000 |
最大制袋宽度 | Max. Bag Width | 600mm | 800mm | 1000mm |
最大制袋长度/高度 | Max. Bag Length | 550mm | 750mm | 950mm |
制袋厚度（单层） | Bag-cutting Thickness | 0.01mm-0.12mm | 0.01mm-0.12mm | 0.01mm-0.12mm |
制袋速度 | Bag-cutting Speed | 50-150pcs/min | 50-150pcs/min | 50-150pcs/min |
长度误差 | Error in Length | ±1mm | ±1mm | ±1mm |
主电机功率 | Main Motor | 1.5KW | 1.5KW | 2.2KW |
总功率 | Total Power | 6.0KW | 7.0KW | 9.0KW |
电源电压 | Machine Voltage | 220V single phase | 220V single phase | 220V single phase |
机器重量 | Weight | 700KG | 800KG | 900KG |
外形尺寸 | Dimension | 4.0m×1.2m×1.5m | 4m×1.4m×1.5m | 4.0m×1.6m×1.5m |
自动纠偏 | EPC controll | have | have | have |
输送带 | conveyor belt | have | have | have |
气动上料 | Pneumatic feeding | have | have | have |
Product Video

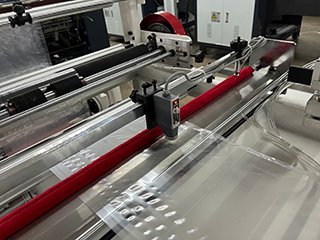

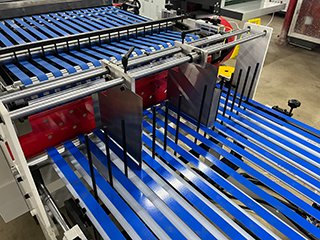

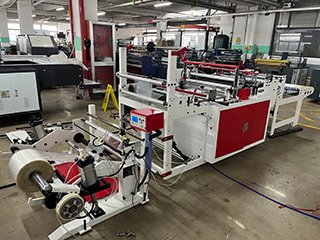

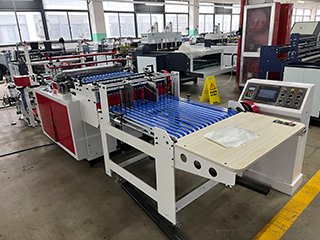

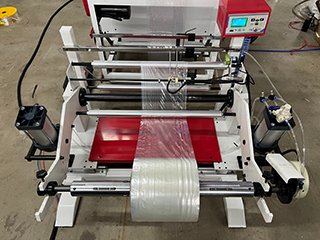

Product Showcase

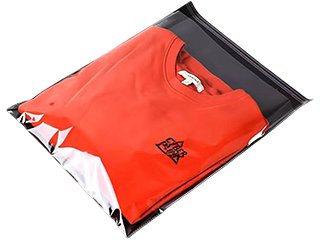

Sample Picture
