SNW-JD260 V Bottom Paper Bag Machine
Main Feature
1 Easy touch screen human-machine interface, the operation function is clear at a glance, easy to control
2 The original Japanese Mitsubishi sports controller is adopted to ensure the stable high-speed operation through the integration with the optical fiber
3 Japan Mitsubishi servo motor with German Schke color standard eye correction to accurately track the print bag size
4 Hydrhydraulic lifting structure and automatic constant tension control.
5 Brushless servo motor is used for raw material correction to reduce the alignment adjustment time of paper roll.
Pick The Appropriate Size Paper Bag Depending On Your Ultimate Desideratum.
From commercial shopping carriers to delicate bakery window bags, SINOWIN has the perfect size configuration for your production needs. With a diverse variety of width options and bottom styles to choose from, your factory can easily create the ideal bag for any industrial application.
SNW-JD260 V Bottom Paper Bag Making Machine
This Machine can produce paper bags with 70-250mm width. It is perfect for making small to medium size paper bags.
SNW-JD350 V Bottom Paper Bag Making Machine
This Machine can produce paper bags with a width from 70-350mm. it is an ideal machine for making snack food paper bags, bread paper bags, etc
One SINOWIN V-Bottom Paper Bag Making Machine With Countless Configurations.
With our advanced V-bottom line, you will not need to invest in multiple separate machines to produce the diverse range of eco-friendly packaging your global clients demand.

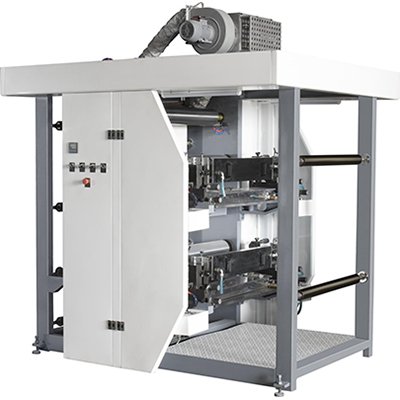

two color printing unit
This equipment can be equipped with an inline 2-color flexographic printing unit for printing customized patterns directly onto the paper bags.

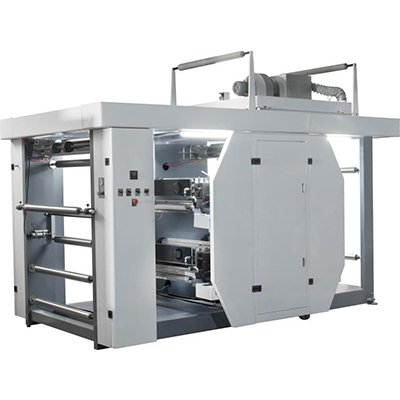

four color printing unit
An optional inline 4-color flexo printing unit is available for this machine, enabling the seamless application of customized graphics and full-color branding onto the paper bags.

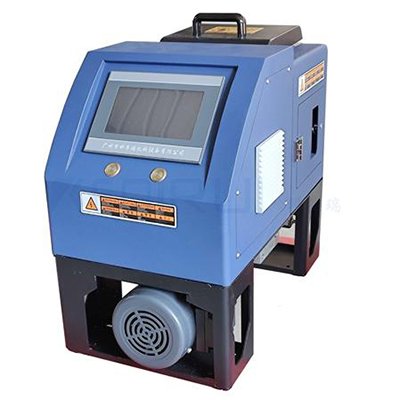

hot glue melt machine
The hot melt glue system achieves fast-curing, leak-proof, and seamless bonding between the paper bag and the plastic window film during high-speed production.
Main Technical Parameters
机器型号 Model | SNW-JD260 |
切袋长度 Cutting Length | 120-400mm |
制袋长度 Bag length （L） | 100-380mm |
制袋宽度Bag width（W） | 80-250mm |
插边尺寸Insert size（G） | 20-110mm |
梯口高度Ladder height | 15-18mm |
纸袋速度Paper bag speed | 100-600pcs/min |
纸料宽度Paper width | 160-780mm |
纸料最大直径Maximum diameter of paper material | 1000mm |
纸料内径Inner diameter of paper | 76mm |
纸料厚度Paper thickness | 45-80g/㎡ |
工作气源Working gas | ≧0.12m³/min，0.5-0.8mpa |
整机功率Power | 380v 3phase 4line 12kw |
整机重量Total weight | 3500kg |
外形尺寸 outline | 6000*1600*1800mm |

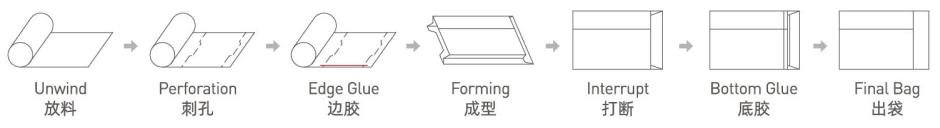

Flow Chart
Product Video

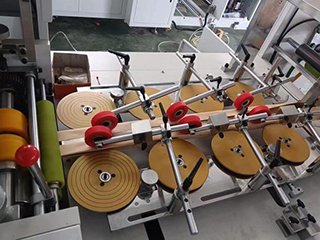

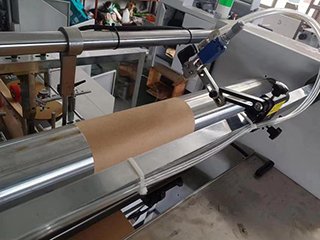

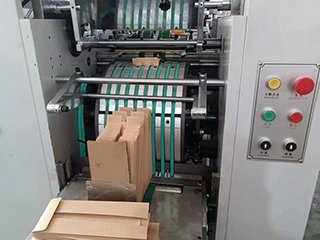

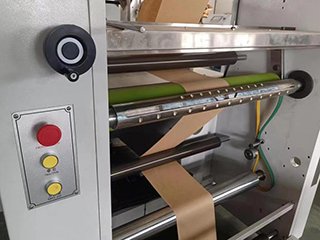

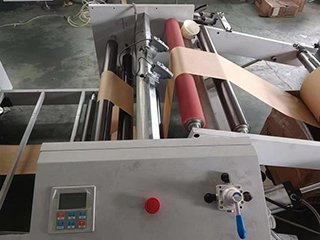

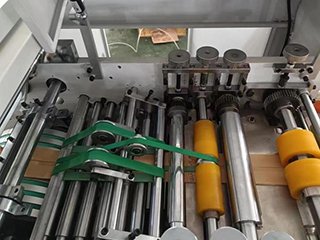

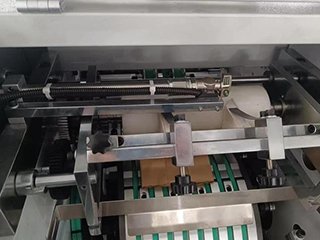

Product Showcase
Sample Picture
Sinowin’s V-Bottom Paper Bag Making Machine (Punctured Cutting Series) is a high-speed, fully automated industrial solution designed for the mass production of sharp-bottom paper bags without handles.
Utilizing a high-precision punctured (serrated) cutting system, the machine effortlessly transforms raw paper rolls into finished V-bottom pouches through web feeding, tube forming, punctured line breaking, bottom gluing, and automatic collection in one continuous line. It is the absolute premier choice for commercial manufacturers supplying eco-friendly packaging to bakeries, fast-food chains, pharmacies, and grocery retail markets.
V BOTTOM PAPER BAG (WITHOUT LOGO)
V BOTTOM PAPER BAG (WITH WINDOW)
V BOTTOM PAPER BAG WITH TWO COLOR
V BOTTOM PAPER BAG WITH FOUR COLOR
Related Products
-
XL-FD220B(T) Fully Automatic High-Speed Square-Bottom Paper Bag Machine (Round Handle)
Fully automatic square bottom paper bag machine is used to produce hand-held paper bags with hand ha...
阅读更多 -
SINOWIN NWFD-450B Square Bottom Paper Bag Making Machine
Rolling feed Square bottom paper bag making machine, it uses paper roll in blank or printed as raw m...
-

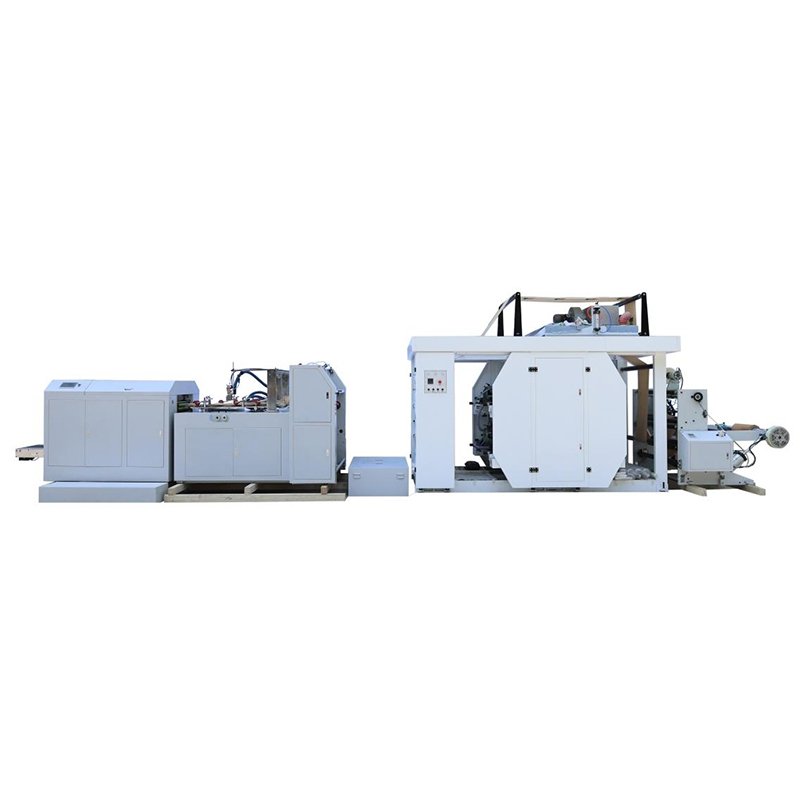

SNW-JD350 High Speed V Bottom Paper Bag Machine With 4 Color
