SNW-H40 500/SNW-H45 600 Series Mini Film Blowing Machine
Characteristics
* Ultra-Compact & Space-Saving Design
Features an integrated, space-efficient tower structure that drastically minimizes installation area, allowing the machine to operate easily in small workshops or lab environments.
* Low Energy Consumption & High ROI
Equipped with an optimized small-diameter screw and energy-saving heating elements, ensuring low operational costs and rapid payback on your investment.
* Flexible & Quick Material Switch
Perfect for small batch customization and material testing (such as HDPE, LDPE, LLDPE, or bio-plastics), with a system that allows fast cleanouts and color changes with minimal waste.
* User-Friendly & Easy Maintenance

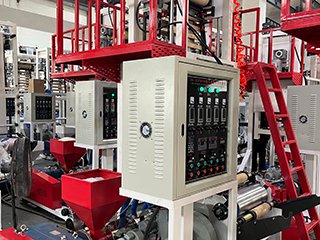

Designed with an intuitive, simplified control panel and accessible mechanical layout, making it exceptionally easy for a single operator to install, run, and maintain.
Use
* Small-Scale Retail Bags & T-Shirt Vests
Ideal for producing small-to-medium convenience bags, mini retail carrier bags, and specialized pharmacy counter sacks.
* Narrow-Width Tube Films & Packaging Sleeves
Perfect for manufacturing small packaging tubes, lollipop packaging films, umbrella covers, and custom narrow industrial protection sleeves.
* Laboratory Material Testing & Sampling
Widely used by plastic manufacturers and R&D facilities for color masterbatch dispersion testing, raw material quality checks, and film sampling.
* Small Drawstring & Bin Garbage Liners
Suitable for producing daily-use small bathroom trash bags, hotel room bin liners, and compact roll-form consumer packaging.
Main Technical Parameters
SNW-H45 600MM | |
薄膜宽度Film Width | 100-500mm |
辊筒宽度Roller width | 600mm |
单层薄膜厚度 One Layer Film Thickness | 0.005-0.045mm(HD) |
最大产量Max Output | 25-30KG/H |
螺杆直径Screw Dia | Φ45mm (38CrMOALA) |
螺杆长径比Screw Length Ratio | 30:1 |
螺杆转速Screw Speed | 10-90rpm |
主电机Main Motor | 11KW with inverter |

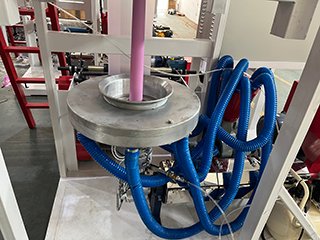

模头Die Head | Φ60mm |
升降Lifter | Optional |
电压Machine Voltage | 380V 50HZ/220V 60HZ (can be customizable) |
机器重量Machine weight | 1.5T |
机器尺寸Machine Dimension | L1.45*W2.0*H3.2m |
Product Video

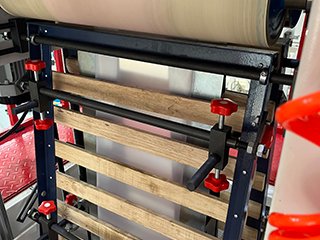

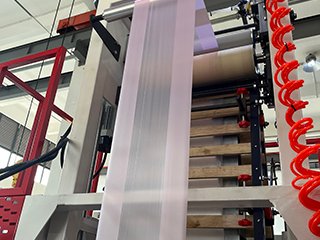

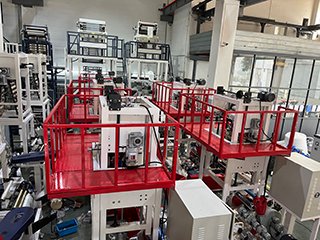

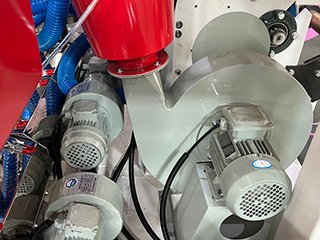

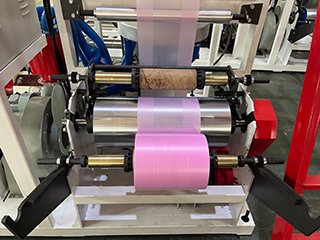

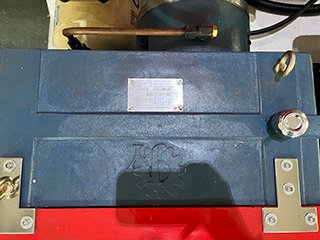

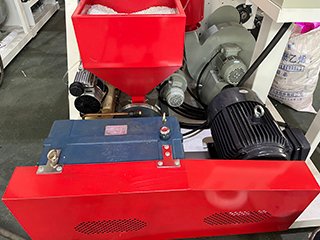

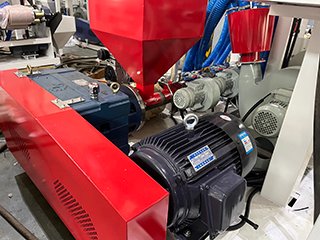

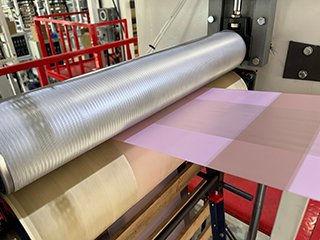

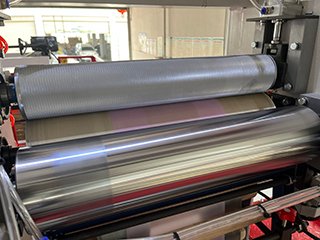

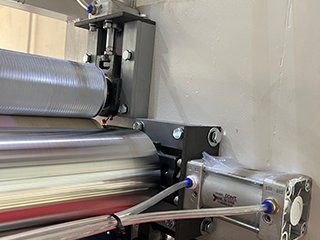

Product Showcase
